Hubble's infrared camera brought back to life
Posted: June 5, 2002

After more than three years of inactivity, and thanks to a new cryogenic refrigerator, the Hubble Space Telescope's Near Infrared Camera and Multi Object Spectrometer (NICMOS) today debuts various breathtaking views of galaxies in several stages of development.

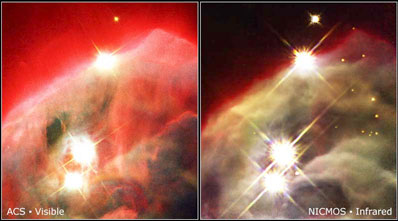

NICMOS has penetrated layers of dust in a star-forming cloud to uncover a dense, craggy edifice of dust and gas [image at right]. This region is called the Cone Nebula (NGC 2264), so named because, in ground-based images, it has a conical shape. NICMOS has peeled away the outer layers of dust to reveal even denser dust. The denser regions give the nebula a more three-dimensional structure than can be seen in the visible-light picture at left, taken by the Advanced Camera for Surveys aboard the Hubble telescope. Credits for NICMOS image: NASA, the NICMOS Group (STScI, ESA), and the NICMOS Science Team (University of Arizona). Credits for ACS image: NASA, H. Ford (JHU), G. Illingworth (UCSC/LO), M.Clampin (STScI), G. Hartig (STScI), the ACS Science Team, and ESA
The first NICMOS test images demonstrate its powerful new capability for making remarkable discoveries unique to space-based near-infrared astronomy. The NICMOS' penetrating vision sliced through the edge-on dusty disk of a galaxy, NGC 4013, to peer all the way into the galaxy's core. Astronomers were surprised to see what appears to be an edge-on ring of stars, 720 light-years across, encircling the nucleus. Though such star-rings are not uncommon in barred-spiral galaxies, only NICMOS has the resolution to see the ring buried deep inside an edge-on galaxy.

Shifting its infrared vision to our stellar backyard, NICMOS peeled back the outer layers of the Cone nebula (also photographed by Hubble's Advanced Camera for Surveys in April) to see the underlying dusty "bedrock" in this stellar "pillar of creation."

"It is fantastic that we have restored Hubble's infrared eyesight. NICMOS has taken us to the very fringes of the Universe and to a time when the first galaxies were formed. We can't wait to get back out there," said Dr. Rodger Thompson, NICMOS Principle Investigator, University of Arizona, Tucson.

Installed on Hubble in February 1997, NICMOS used infrared vision to probe dark, dusty, never-before-seen regions of space with the optical clarity that only Hubble can provide. Its infrared detectors operated at a very cold temperature (minus 351 degrees Fahrenheit, which is minus 213 degrees Celsius or 60 degrees Kelvin).

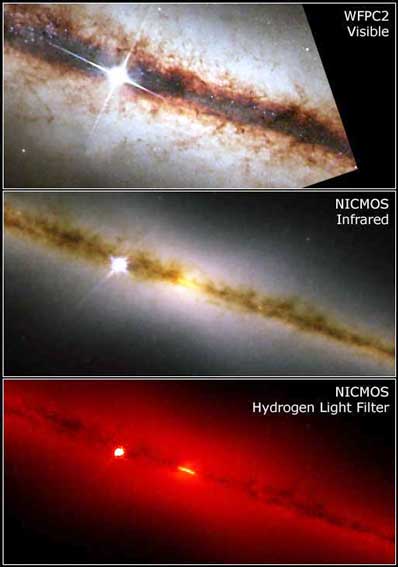

NICMOS has pierced the dusty disk of the edge-on galaxy NGC 4013 and peered all the way to the galactic core. To the surprise of astronomers, NICMOS found a brilliant band-like structure, that may be a ring of newly formed stars [yellow band in middle photo] seen edge-on. In the visible-light view of the galaxy [top photo], the star-forming ring cannot be seen because it is embedded in dust. The most prominent feature in the visible-light image taken by the Wide Field and Planetary Camera 2 (WFPC2) is the thin, dark band of gas and dust, which is about 500 light-years thick. Credits for NICMOS images: NASA, the NICMOS Group (STScI, ESA), and the NICMOS Science Team (University of Arizona). Credits for WFPC2 image: NASA, the Hubble Heritage Team (STScI/AURA) and ESA
To keep the detectors cold, NICMOS was encased in a thermos- like container filled with solid nitrogen ice. It was expected that the solid nitrogen ice would last approximately four years. However, the ice evaporated about twice as fast as planned and was depleted after only 23 months of NICMOS science operations. In 1999 -- with its supply of ice exhausted -- NICMOS became dormant.

Determined not to be defeated, NASA scientists and engineers devised a plan to restore NICMOS to life. They turned to a new mechanical cooling technology, jointly developed by NASA and the U.S. Air Force. The NICMOS Cooling System (NCS) was built by NASA's Goddard Space Flight Center, Greenbelt, Md., and the Creare Corporation, Hanover, N.H.

The mechanical cooler operates on principles similar to a modern home refrigerator. It pumps ultra-cold neon gas through the internal plumbing of the instrument. At its core are three miniature, high-tech turbines that spin at rates up to about 430,000 rpm. Since the speed of the turbines can be adjusted at will, the NICMOS light sensors can be operated at a more optimal temperature than was possible before, about 77 degrees Kelvin (minus 321 degrees Fahrenheit).

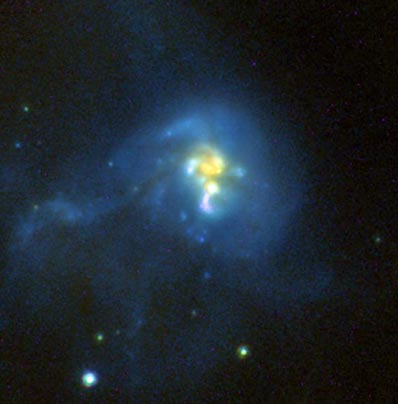

Two powerful cameras aboard Hubble teamed up to capture the final stages in the grand assembly of galaxies. The photograph, taken by the Advanced Camera for Surveys and NICMOS, shows a tumultuous collision between four galaxies located 1 billion light-years from Earth. The galactic car wreck is creating a torrent of new stars. The tangled up galaxies, called IRAS 19297-0406, are crammed together in the center of the picture. IRAS 19297-0406 is part of a class of galaxies known as ultraluminous infrared galaxies (ULIRGs). ULIRGs are considered the progenitors of massive elliptical galaxies. Credits: NASA, the NICMOS Group (STScI, ESA), and the NICMOS Science Team (University of Arizona)
The NICMOS cooling system is virtually vibration-free, an important aspect for Hubble since vibrations can affect image quality in much the same way that a shaky camera produces blurred pictures.

"The Hubble Space Telescope Servicing Mission 3B is now demonstrated to be a complete success. We had 100 percent servicing mission success, and now we have 100 percent performance success for the newly installed NICMOS Cooling System," said Dr. Ed Cheng, HST Development Project Scientist from NASA's Goddard Space Flight Center.

Astronauts installed the NCS inside Hubble during the fifth and final spacewalk of Servicing Mission 3B on March 8, 2002. On March 18, the NCS was turned on via commands sent from the Space Telescope Operations Control Center at Goddard. It has continued to operate flawlessly ever since. The deep interior of the NICMOS reached the target temperature of 70 degrees Kelvin (minus 333 degrees Fahrenheit) on April 11. Most of the internal heat had been removed from the instrument, and the NCS stabilized itself at this temperature. On April 19, NICMOS was brought up to a fully operational state and testing of its internal condition began. Since then, fine adjustments have been made to the settings of the NCS to optimize the instrument for best performance.
