Temperature map of volcanic moon Io presents a puzzle
Posted: June 24, 2001

Earth's tropics are hotter than the polar regions for a good reason, so scientists are puzzled that the same pattern doesn't show on Jupiter's moon Io. Powerful volcanoes and the previous day's sunshine warm the nighttime surface of Jupiter's moon Io, as seen in this image from NASA's Galileo spacecraft.

Aside from hot spots at volcanic sites, night temperatures on Io appear to be about the same near the equator as near the poles even though, as on Earth, the equator gets more direct sunshine to heat the surface, according to the new map of Io's nighttime surface temperatures from Galileo.

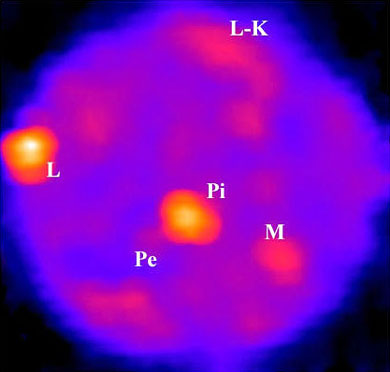

TOP: A new map of Io's nighttime surface temperatures from Galileo. BOTTOM: Context image of Io. Photos: NASA/JPL/Lowell Observatory
The top frame shows the best view that Galileo has yet provided of Io's nighttime temperatures. For reference, the bottom frame, based on Galileo camera images, shows the same hemisphere of Io in visible light. The thin bright crescent indicates the only observable portion illuminated by sunlight during the temperature measurements. Several volcanoes are identified on both images: L-K is Lei-Kung Fluctus, L is Loki, Pi is Pillan, M is Marduk, and Pe is Pele.

The temperature map comes from observations by Galileo's photopolarimeter-radiometer instrument during the spacecraft's 27th orbit of Jupiter, in February 2000. Blue indicates the coldest temperatures, near 90 degrees Kelvin (minus 297 degrees Fahrenheit), while oranges and yellows indicate the highest temperatures, in excess of 170 K (minus 153 F). Small areas of the volcanoes are far hotter than this, exceeding 1,500 K (2,240 F). However, in this relatively low-resolution view, which shows no features smaller than about 340 kilometers (210 miles) across, radiation from these small, hot regions is mixed with radiation from surrounding colder regions, so the high temperatures are not detected directly. The observation was made without a filter, so it measures the total heat radiation from Io's night side at all wavelengths.

Much of the heat comes from a few discrete volcanoes. The brightest is Loki, which radiates roughly 15 percent of Io's total volcanic heat, and would appear much brighter still were it not for severe foreshortening due to its position near the edge of the disk. Second brightest is Pillan, where the heat is radiated by extensive cooling lava flows produced largely by an eruption witnessed by Galileo in June 1997 and later. In contrast, although the volcano Pele spouts Io's largest plume, which produces the large orange ring seen in the right-hand image, Pele emits very little total heat. This is because Pele's activity, though vigorous, is confined to a small volcanic crater, where there is no room for large, warm lava flows to radiate heat.

The cooler regions, shown in blues and purples, are dominated by radiation from the surface between the volcanoes, which was warmed by sunlight the previous day and retains some of that heat through the night. Because high-latitude regions receive less sunlight during the day, we would expect them to be cooler at night, but the image shows that temperature varies little with latitude, which is puzzling. Perhaps excess volcanic heat is radiated at the poles, or the polar regions are composed of surface materials that cool off less at night than the materials at lower latitudes. Also, viewing the poles from this angle preferentially presents slopes that were tilted towards the Sun during the day, and thus received more sunlight than the average surface, and this effect might also contribute to the apparent warmth near the poles. The photopolarimeter-radiometer observations of the polar regions on subsequent Io flybys may clear up this mystery.

Some 250 scientists meet June 24-30 in Boulder, Colo., to discuss Io, Europa and other members of the Jupiter system. Dr. John Spencer, of the Lowell Observatory, Flagstaff, Ariz., will describe some possible explanations for Io's odd heat balance. For example, the poles may have more volcanic heating than the lower latitudes, or they may be surfaced with materials that cool off slower at night.

The Jet Propulsion Laboratory, a division of the California Institute of Technology in Pasadena, manages Galileo for NASA's Office of Space Science, Washington, D.C.
