The star "iota Horologii", 56 light-years from Earth, possesses not only an extrasolar planet, but also a dust disk. This is the exciting result of recent observations with the ADONIS (ADaptive Optics Near Infrared System) instrument, mounted at the European Southern Observatory 3.6-m telescope at the La Silla Observatory.

Such a disk holds information about the formation of the exoplanetary system. As this is the fourth known example of a star with both a disk and a planet, that combination may indeed be comparatively common among solar-type stars.

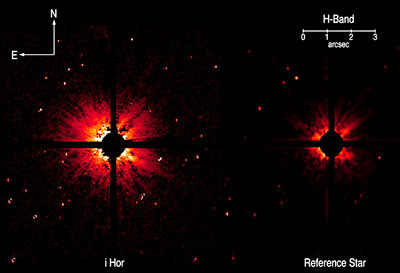

a dusty disk around the star iota Horologii (left) as compared with that of a "reference" star (right). At a distance of 56 light-years from Earth, iota Horologii was already known to possess an extrasolar planet. The discovery of the disk may help to better understand how this exoplanetary system was formed.

Our own Solar system also contains dust. When the dust scatters the sunlight, this can be observed as "zodiacal light", a cone of faint light extending above the western horizon soon after sunset or the eastern just before sunrise.

The same phenomenon should thus be observable from the planet orbiting iota Horologii.

Last year, the star iota Horologii was found to have a planetary companion, at least twice as heavy as Jupiter, the largest planet in the Solar System. It was the first exoplanet to be discovered in an almost earth-like orbit.

This discovery was based on long-term measurements of the radial velocity of iota Horologii by means of the 1.4-m Coudé Auxiliary Telescope (CAT) at La Silla. The extremely accurate observations were made with the Coude-Echelle-Spectrometer (CES) which is now connected to the ESO 3.6-m telescope. With the combination of spectroscopic (CES) and high-angular resolution (ADONIS) observational facilities at one telescope, the 3.6-m is uniquely suited for this type of front-line research.

Dust disks around stars still retain information about the formation processes of the exoplanetary systems as they are formed by collisions of planetesimals or proto-planets. However, it is still a somewhat controversial issue exactly how the presence of giant planets influences these collisions or whether the existence of a planetary system can be inferred from observed structures in dust disks.

To cast more light on this fundamental issue, it is necessary to search for systems which have both a planet and a dust disk. Our own Solar System contains a significant amount of dust particles which can be seen during very clear evenings and nights by naked eye as a diffuse band of light in the sky - the "zodiacal light". Observations from the Voyager spacecraft have shown that this dust extends quite far out, well beyond the orbit of planet Pluto.

The team used the ADONIS instrument with the SHARP II camera to search for dust disks around the iota Horologii planetary system. ADONIS corrects the atmospheric turbulence in real-time by means of a computer-controlled flexible mirror, allowing the sharpest possible images to be recorded with this special camera.

In order to detect circumstellar material, it is an absolute condition that the light that is recorded from the star itself is reduced to a minimum. The circumstellar dust reflects only a small fraction of the stellar light and would otherwise be completely outshone by the intense light from the star in the middle.

This is achieved by inserting in front of the detector a so-called coronographic mask that blocks the light of the star. The chosen diameter is a compromise between the desire to detect features as close as possible to the star and the rapidly increasing amount of stellar light as the size of the mask is decreased.

For the the present observations of iota Horologii, a mask with a diameter of 1.0 arcsec was used (about 17 AU, or 2550 million km at the distance of the star). A series of short exposures were made through a near-infrared filter (in the H-band that is centred at wavelength 1.64 µm), a spectral region where the disk/star light intensity ratio and the instrument efficiency are optimal.

In the course of the extensive data analysis the exposures are combined to produce the resulting image of the star. Moreover, to correct for stray light in the instrument, it is necessary to "subtract" the image of a reference star which is known to be free of any circumstellar material. This procedure effectively reduces the unavoidable halo of instrumentally introduced stray light from the star that - despite the mask - is still significantly brighter than the light coming from the disk.

Even though these new images are quite sensitive, a direct detection of the planet near iota Horologii is not possible with this technique as its light is several thousand times fainter than that from the disk. Moreover, the planet orbits the star at a distance of only 1 AU and is thus completely hidden behind the coronographic mask which has a radius of 8.5 AU.

The dust disk around iota Horologii is quite extended; it is detected to a distance of about 65 AU, i.e. 10,000 million km, from the star. This corresponds to more than twice the distance of Neptune from the Sun. It is also much larger and denser than the dust disk now observed in the Solar System. From the elongation, it appears that the inclination of the disk is about 42°.
