Astronauts David Wolf and Christopher Cassidy are preparing for a challenging spacewalk today, working at the far left end of the International Space Station's long power truss to replace four of six aging batteries in the lab's oldest set of solar arrays.

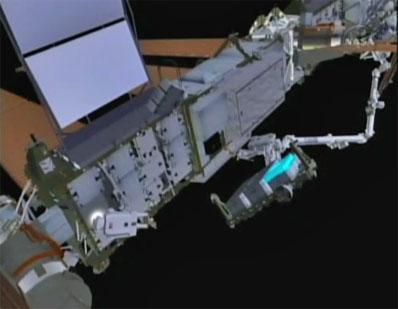

An artist's concept of spacewalkers Chris Cassidy (left) and Dave Wolf (right) working to swap out batteries on the Port 6 truss. Credit: NASA TV

If one visualizes a football field, the station's airlock is on the right side of the 50-yeard line while the port-six, or P6, solar array is deep in the left end zone. Along with working far from the safety of the airlock, the spacewalkers must manually swap out 375-pound batteries without damaging fragile cooling fins.

"EVA 3 brings its own challenges," Wolf said in a NASA interview. "Chris, Navy Seal, he and I will go out several hundred feet, multiple tether lengths out. There's no way to get back quick. The (space station) robot arm will place these large solar array batteries reasonably near where they will be installed. But we'll be handling these heavy batteries, each the size of a small refrigerator, each with rows of delicate cooling fins on the back.

"And we will pull those out of the Vertical Cargo Carrier, hand them back and forth until we get them in position and mate those fins with the opposing fins on the space station. Those are cooling fins so those batteries won't overheat in use. We'll do four of those batteries on EVA-3. We'll do two more EVA-4 and we consider this one of the highest critical pieces of work to do on this mission."

The final two P6 batteries will be replaced during a spacewalk Friday by Cassidy and Thomas Marshburn.

Today's spacewalk was scheduled to begin at 10:58 a.m. EDT, but the astronauts were running ahead of schedule in their preparations and could start early. This will be the 128th EVA devoted to station assembly and maintenance since construction began in 1998, the ninth so far this year and the third of five planned by Endeavour's crew. It will be the seventh spacewalk for Wolf and the first for Cassidy, a former Navy Seal.

For identification, Wolf will be wearing a spacesuit with solid red stripes around the legs while Cassidy will use a suit with diagonal stripes.

"P6 is the truss segment that's been up there the longest and the batteries are therefore the oldest so those batteries need to be changed out and there's six of them total," Cassidy said in a NASA interview. "We've learned in our training that it's unrealistic to get six completed in one spacewalk. So Dave and I will tackle four and they need to be done in pairs. You know, when you read the instructions on your flashlight and it says, 'Don't mix an old one and a new one together,' I never knew why. Well, the same thing applies to space batteries. You want the pairs to be both new batteries. We can't mix old ones and new ones.

"So consequently if we do two and we try to do the third, we're committed to the fourth. I think we could probably do five in one EVA, but it doesn't make sense from a hardware perspective. They're done in sets. So we're doing these first four batteries."

Each nickel-hydrogen battery measures 40-by-36-by-18 inches and weighs 375 pounds. Two batteries in series can store 8 kilowatts of power. The batteries have a design life of 6.5 years and can endure more than 38,000 charge/discharge cycles.

"P6 is a long ways away from the airlock," Cassidy said. "I think it's the farthest you could get from the airlock hatch because the airlock's on the starboard side. We're going port, and it's way out there. We have safety tethers that allow us to go 55 or 85 feet. There's two different sizes and so we have to stack ... some together to give us twice the distance.

"The task in and of itself, of physically pulling out a battery and putting it in, is not necessarily the hard part," Cassidy said. "The hard part is the choreography with the folks moving the arm, Doug (Hurley) and Julie (Payette). As we grab the battery, they'll guide the pallet, the ICC-VLD, away from us, essentially pulling the battery out of the carrier. And then Dave and I have to ... do a series of hand offs. He grabs it and then I move and then I'll grab it and he lets go and then he moves and we kind of do this hopping motion until we get to the spot where the battery's going to go."

Here is an updated timeline of today's activity (in EDT and mission elapsed time; includes revision K of the NASA television schedule):

EDT........DD...HH...MM...EVENT

07/22
06:03 AM...06...12...00...STS/ISS crew wakeup
06:43 AM...06...12...40...EVA-3: 14.7 psi repress/hygiene break
07:28 AM...06...13...25...EVA-3: Airlock depress to 10.2 psi
07:53 AM...06...13...50...EVA-3: Campout EVA preps
08:03 AM...06...14...00...ISS daily planning conference
09:23 AM...06...15...20...EVA-3: Spacesuit purge
09:38 AM...06...15...35...EVA-3: Spacesuit prebreathe
10:28 AM...06...16...25...EVA-3: Crew lock depressurization
10:33 AM...06...16...30...SSRMS ICC maneuver to EVA work site
10:58 AM...06...16...55...EVA-3: Spacesuits to battery power
11:03 AM...06...17...00...EVA-3: Airlock egress
11:13 AM...06...17...10...EVA-3: Setup
11:28 AM...06...17...25...EVA-3: EV1: JLE PL preps
11:28 AM...06...17...25...EVA-3: EV2: JEF MLI removal
11:58 AM...06...17...55...EVA-3: P6 battery replacement (4 of 6)
04:43 PM...06...22...40...EVA-3: Cleanup and ingress
04:48 PM...06...22...45...SSRMS maneuvers to clear SARJ
05:28 PM...06...23...25...EVA-3: Airlock repressurization
05:38 PM...06...23...35...Spacesuit servicing
06:18 PM...07...00...15...Evening planning conference
07:30 PM...07...01...27...Mission status briefing
09:03 PM...07...03...00...ISS crew sleep begins
09:33 PM...07...03...30...STS crew sleep begins
10:00 PM...07...03...57...Daily highlights reel
