Researchers with the Department of Energy's Los Alamos National Laboratory have determined that Mars has enough water to sustain human exploratory missions.

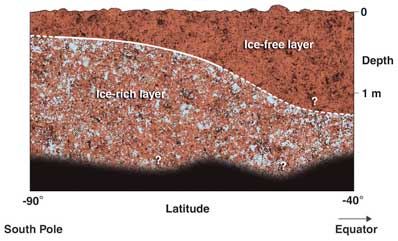

Graphic shows a cross-section of the depth of the ice changing with latitude. Credit: NASA/JPL/University of Arizona/Los Alamos National Laboratories

A neutron spectrometer, designed and built at Los Alamos and flown aboard NASA's Mars Odyssey, has been mapping the Red planet for the past three months for hydrogen, an indicator of water-ice.

The results appear in the May 31 issue of Science magazine.

"The surface soils of Mars are rich in hydrogen," said Los Alamos' principal investigator Bill Feldman. "Soil extending 60 degrees from the Martian poles contain from 35 percent to 100 percent of water-ice buried beneath a shallow overburden of hydrogen-poor soil. Although scientists have known that water ice is stable close to the surface in these regions, our new measurements are the first to give the amount of near-surface water on Mars.

"The amount of water present on Mars is sufficiently large that it can support future human exploration activities," Feldman continued. "We have anticipated these results for 17 years and are excited that all of our wishes and hard work have been fulfilled."

The neutron spectrometer maps show that the large region that extends from the poles to within about 50 degrees of the equator contains Mars' most abundant reservoirs of hydrogen, or water ice. The large expanses at low to middle latitudes of Mars also contain significant amounts of hydrogen, which are most likely deposits of chemically and/or physically bound water and/or hydroxyl radicals - one hydrogen atom bound to one oxygen atom.

The neutron spectrometer data are supported by simultaneous measurements made using Mars Odyssey's gamma-ray spectrometer, operated by the University of Arizona.

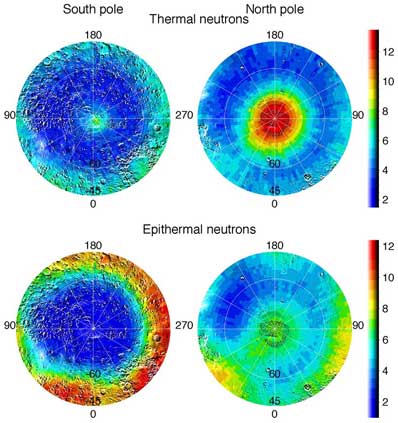

Thermal (top) and epithermal (bottom) polar maps show neutrons above the south (left) and north (right) polar caps. Enhancements of the thermal fluxes at both caps show that the central portion of the north cap is covered by dry-ice frost because it is late winter. The residual polar cap at the south cap also is covered by a thick layer of dry ice even though it is late summer. The maps of epithermal neutrons show a high abundance of subsurface water ice near the surface south of about negative 60 degrees latitude and within a ring that almost completely surrounds the central portion of the north polar cap that is covered by a thick layer of dry-ice frost. A meridional lane extending southward from the mouth of Chasma Borealis is probably covered by a thin layer of dry ice frost at this time of year (late northern winter). Credit: NASA/JPL/University of Arizona/Los Alamos National Laboratories

Los Alamos' neutron spectrometer began mapping the Martian surface while it was summer in the south and winter in the north. It revealed the extent to which the northern and southern polar caps are covered in a thick layer of carbon dioxide, or dry ice. During winter, the carbon dioxide layers extend from the poles to within about 60 degrees of the equator because the dry ice frost settles out of the atmosphere when temperatures fall about 186 degrees below zero Fahrenheit. During the warmer summer the carbon dioxide layer evaporates completely in the north but remains as a thick cover of the residual polar cap in the south.

The first successful attempt to measure the global distribution of neutrons about a planetary body was made using a similar neutron spectrometer aboard Lunar Prospector. Comparisons between the lunar and Martian neutron spectrometer data reveal that Mars' soil is richer in hydrogen than is the moon's soil by more than several factors of 10 to several factors of 1,000.

Los Alamos neutron spectrometer will continue to measure neutrons that leak outward from the upper meter of the Martian soil for several more years. Mars Odyssey's orbit is such that the entire planet's surface is sampled in four-degree longitudinal increments weekly.

Scientists will use these data not only to determine the amount of water on Mars, but to map the basaltic lava cover, measure the seasonal variation of dry-ice frost that covers both poles during their winter months and help interpret data from the gamma-ray spectrometer to determine the quantity and composition of the most abundant elements on the planet.
